MITECH X-Ray Flaw Detector XXG-1605 NDT Industrial portable x-ray
welding flaw detector
Overview
MITECH inflatable X ray generator is a portable X-ray flaw detector
for X ray nondestructive testing. With strong anti-interference
ability, good stability, reliable operation, it has obvious
advantages in the construction and high-altitude operations, is
widely used in shipbuilding, machinery manufacturing, aviation,
railway, pressure vessels, boilers, oil, Chemical industry,
national defense industry and other industries, is the ideal
equipment for nondestructive testing.
Mitech focus on non-destructive flaw detector R & D, production,
sales. Please don't worry. All of products have high quality.Our
service throughout the country can provide door-to-door service.
Spot hotline: 4000600280
Ceramic Tube Orientation Series Comparable
| Model | Output voltage(KV) | Capacity(kW) | Focus dimension(mm×mm) | Radiation angle | Maximum penetration(Q235) | Generator weight(kg) | Generator dimension(mm×mm×mm) |
| XXG-1605 | 60-160 | >1.5 | 1.5×1.5 | (40+5)° | 20 | 18 | 210×210×560 |
| XXG-2005 | 80-200 | >2.0 | 1.5×1.5 | (40+5)° | 30 | 25 | 280×280×620 |
| XXG-2505 | 130-250 | >2.5 | 2.0×2.0 | (40+5)° | 40 | 33 | 320×320×650 |
| XXG-3005 | 150-300 | >3.0 | 2.5×2.5 | (40+5)° | 50 | 37 | 320×320×680 |
| XXG-3505 | 200-350 | >3.5 | 2.5×2.5 | (40+5)° | 59 | 37 | 320×320×680 |
Standard equipments
| NO. | Name | QTY | Remarks |
| 1 | X ray flaw detector | 1 | |
| 2 | controller | 1 | |
| 3 | Connection cable(10 cores) | 1 | |
| 4 | Power cable(2 cores) | 1 | |
| 5 | Ground lead | 1 | |
| 6 | Fuse(3A) | 5 | |
| 7 | Attached files | 1 | |
Working Conditions
Environment temperature: -25℃-40℃
Relative humidity: no bigger than 85%
Safe work pressure: 0.35-0.50mPa
Note, Do not use when the pressure is under 0.35mPa
The Emission of X-ray
Figure 1 Figure 2
Figure 3 Figure 4
Figure 1:Glass tube circumferential target generator
Figure 2:Ceramic tube directional generator
Figure 3:Glass tube circumferential cone target generator
Figure 4:Glass tube directional generator
Generator Structure
1 Gas pressure gauge 2 Cable line socket
3 Caution light 4 X ray generate area
5 Cooler fan
X ray generator combination, X ray tube, high voltage transformer
and the insulation gas packaged together in bottled aluminum shell.
Warning lights indicates the flaw detection system is in the ready
state, and there will be x rays, during the production of X ray,
warning light

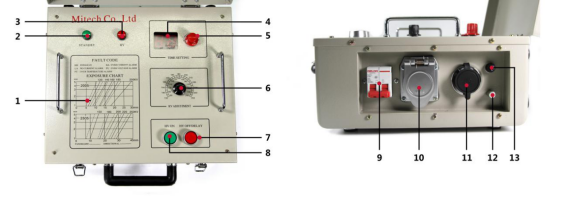

Controller Appearance
1 Fault code and exposure chart 2 Standby light
3 HV light 4 Digital display
5 Time knob 6 KV presetting knob
7 “HV on” key 8 “HV off” key
9 Power switch 10 Connection cable socket
11 Power cable socket 12 Earthing wire
13 Fuse holder(3A)
The main parts in the controller are:KV control panel, mA control
panel, microcomputer control panel, protection board, Controllable
silicon high voltage module, LC filter, main,assistant silicon
control inverter system. The inner controller has cooling fans,
vent-windows on the side and back.
