    Newly Designed Handheld Thickness Gauge 150x74x32MM For Measuring Use MT180

    Ask Lasest Price
    Brand Name : MITECH
    Model Number : MT180
    Certification : CE 、 ISO9001 、 GOST
    Payment Terms : T/T, Western Union , PayPal
    Supply Ability : 500 Unit/Units per Month
    Delivery Time : after receiving payment
    • Product Details
    • Company Profile

    Newly Designed Handheld Thickness Gauge 150x74x32MM For Measuring Use MT180

    MT180 Multi-mode Ultrasonic Thickness Gauge with newly design can reduce the faults in use / two mode

    Product Overview

    The model MT180 is a multi-mode ultrasonic thickness gauge. Based on the same operating principles as SONAR, the instrument is capable of measuring the thickness of various materials with accuracy as high as 0.1/0.01 millimeters.
    The multi-mode feature of the gauge allows the user to toggle between pulse-echo mode (flaw and pit detection), and echo-echo mode(eliminate paint or coating thickness).


    Main Functions

    • Multi-mode: Pulse-Echo mode and Echo-Echo mode.
    • Capable of performing measurements on a wide range of material, including metals, plastic, ceramics, composites, epoxies, glass and other ultrasonic wave well-conductive materials.
    • Transducer models are available for special application, including for coarse grain material and high temperature applications.
    • Probe-Zero function, Sound-Velocity-Calibration function
    • Two-Point Calibration function.
    • Single point mode and Scan mode. Seven measurements readings per second in single point mode, and sixteen per second in Scan Mode.
    • Coupling status indicator showing the coupling status.
    • Units: Metric/Imperial unit selectable.
    • Battery information indicates the rest capacity of the battery.
    • Auto sleep and auto power off function to conserve battery life.
    • Optional software to process the memory data on the PC.


    Product Specifications

    Display

    4.5 digits LCD with EL backlight

    Range

    Pulse-Echo mode: (0.65~600)mm (in Steel) Echo-Echo mode: (3~30)mm for MT180

    Sound Velocity Range

    (1000~9999) m/s

    UnitsMetric/Imperial unit selectable.

    Resolution

    0.1mm/0.01mm

    Accuracy

    ±(0.5%Thickness+0.01)mm, depends on materials and conditions

    Storage

    Memory for up to 20 files (up to 99 values for each file) of stored values



    Configuration

    NoItemQty.Note

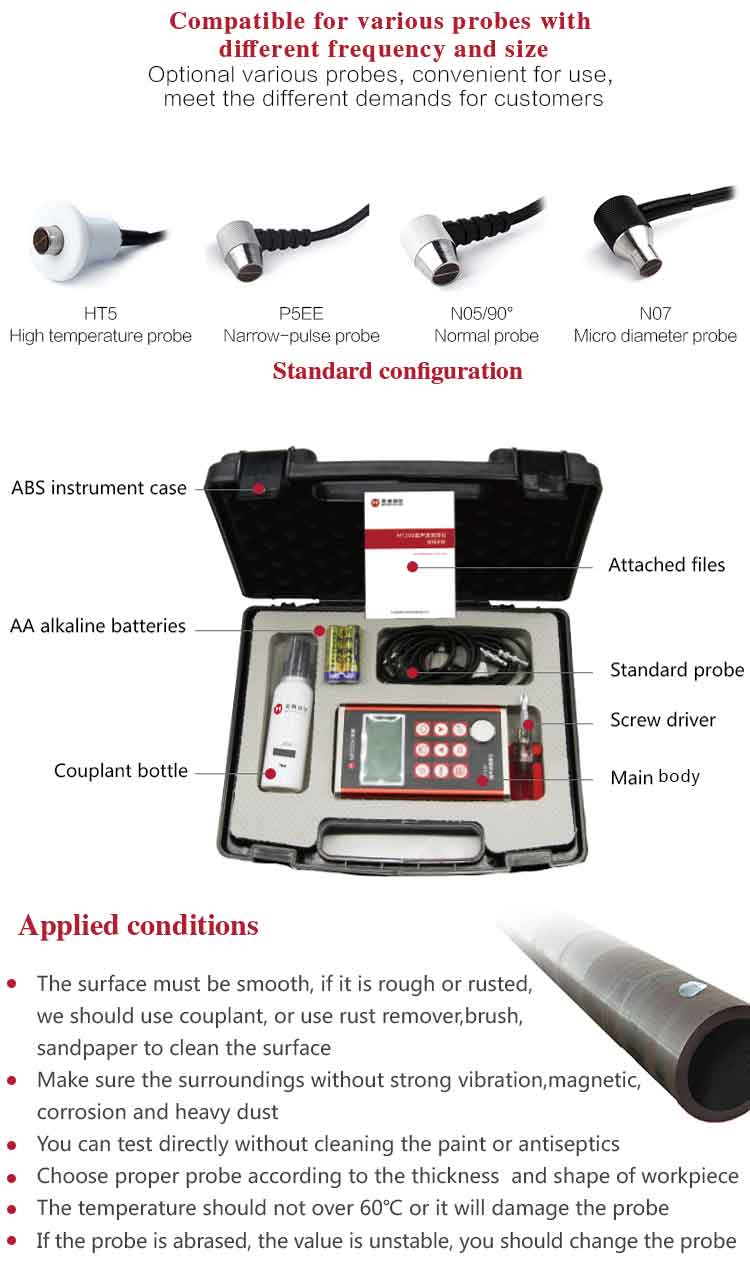

    Standard Configuration

    1Main body1
    2Probe P5EE1
    3Couplant1
    4Instrument Case1
    5Operating Manual1
    6Alkaline battery2AA size


    Optional Configuration

    1Probe N05 (5MHz)See Table3-1
    2Probe N05/90°(5MHz)
    3Probe N07(7MHz)
    4Probe HT5(5MHz)
    5DataPro Software1
    6Communication Cable1



    Transducer Selection

    Model

    Freq
    MHz

    ΦmmMeasuring RangeLower limitDescription


    N05

    5101mm~600.0mm(In Steel)Φ20mm×3.0mm


    Normal Measurement


    N05/90°

    5101mm~600.0mm(In Steel)Φ20mm×3.0mm


    Normal Measurement


    N07

    76

    0.65mm~200.0mm
    (In Steel)

    Φ15mm×2.0mmFor thin pipe wall or small curvature pipe wall measurement


    HT5

    5121~600mm (In Steel)30mmFor high temperature (lower than 300℃) measurement.


    P5EE

    510

    P-E: 2~600mm
    E-E: 3~100mm

    Φ20mm×3.0mm


    Normal Measurement

    Instrument Maintenance

    When the thickness gauge appears some other abnormal phenomena, please do not dismantle or adjust any fixedly assembled parts. Fill in and present the warranty card to us. The warranty service can be carried on. Keep it away from vibration, strong magnetic field, corrosive medium, dumpiness and dust. Storage in ordinary temperature. With Original packing, transport is allowed on the third grade highway.
