Mitech Industrail endoscope MVD series

Product Overview

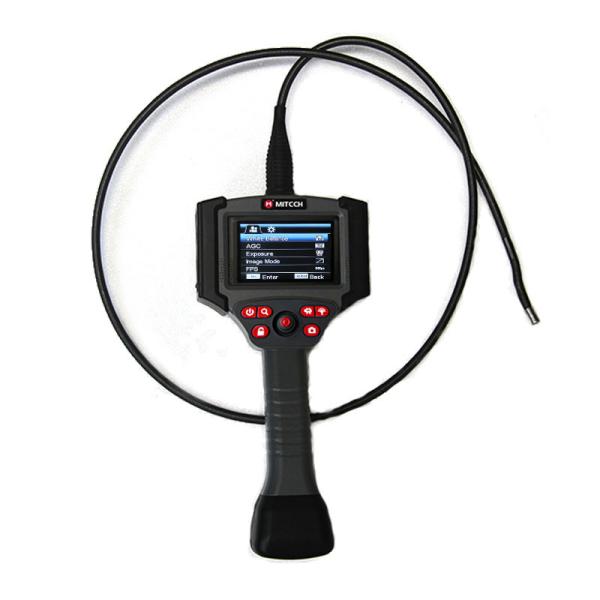

MITECH MVD series of industrial endoscope, based on the CMOS image sensor principle, can realize image shooting in the pipe or narrow area which can not be directly observed. And the results can be displayed with high-definition ,so as to achieve non-destructive testing. MITECH MVD series endoscope is a high-precision video electronics industry endoscope, the use of color LCD display and highly integrated CMOS image sensor to ensure that the video endoscopic image of the clear, realistic; its low power consumption, quick signal transmission speed , and easy to carry,operate. It can detect pipe or narrow spaces without tearing apart or damaging machine while not working.Cracks, welds, foreign body, wear and internal processing of parts and other circumstances can be detected with high quality images. It is widely used in aerospace, petrochemical, mechanical casting, national defense military, power production, automobile transportation and other fields, and is the important detection and monitoring equipment of industrial equipment testing and maintenance and other aspects.

Working Principle

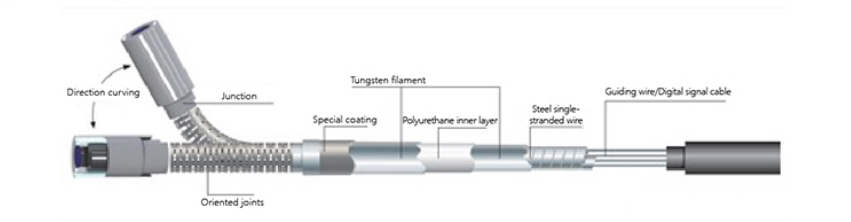

Based on the CMOS image sensor principle,MITECH MVD industrial endoscope can collect picture information in narrow spaces. The digital signal can be transferred to the host through video signal cable plugged in pipe, thus to achieve picture display and storage.The oriented joints connect the probe with insert tube and the guide wire inside the joints can turn around freely in all directions controlled by mechanical device. As a result, the CMOS sensor can shoot excellent photos as required in time.

Technical Parameters

• Probe diameter: ɸ4.5, ɸ6.2, ɸ8.4(unit:mm)
• Probe material: The stainless steel with Ti coating
• Imaging sensor: CMOS
• Field angle: ＞90°
• FNO: 2.8,4.9
• Depth of focus: 8mm~80mm,15~∞
• Brightness: LED18000Lux,30000Lux,50000Lux
• Brightness control: 5 gears adjustable
• Probe length: 15 mm
• Camera pixels: 350,000 410,000 440,000
• Video Output: NTSC/PAL
• Storage: 8 G (Micro SD Card)
• Picture format: JPG,1024×768pixel
• Video format: AVI,720×576pixel
• Frame rate: 15~30 fps
• Line length: 1.5m,3m,6m
• Line material: Tungsten wire
• Probe direction: 360°
• Screen size : 4.3 inches
• Screen resolution: 800×480
• USB port: Mini-USB B type
• Battery: Li-On rechargeable, 3.7V/6000mAh
• Working time : >4h
• Charging time: 5h
• AC Adapter : AC 100-240V~50/60HZ
• Shell material: ABS
• Weight: 960g (main unit)

• Protection level: IP65,IP67 (Optional)

Applications

• Turbine overhaul: Turbine cleaning, paddle and nozzle / nozzle block check, find off parts, corrosion inside and outside the pipe;
• Aerospace: Aircraft parts, large diesel engines, various engines and pipelines for routine maintenance and inspection;
• Petrochemical Industry: Used for detection of oil refineries in the storage tank, heat exchangers, ball tankers, chemical industry pipeline facilities, special inspection and pressure vessel production units of containers, cylinders, pipelines;
• Military: Used to check the mechanical gear parts wear, loose, oil spills, barrel internal situation;
• Motor traffic: Car engine cleaning and maintenance;
• Machine casting: Automotive parts casting, hydraulic casting, pump body casting, mechanical parts casting, pipe fittings casting;Used to check the situation of sand casting, burr and staggered hole quality control;
• Power industry: Power generation, equipment defect detection and condition monitoring.
