    Simple Operation DC Spark Leak Detector 220x130x88mm For Chemical And Oil Industry MTH-7D

    Ask Lasest Price
    Brand Name : Mitech
    Model Number : MTH-7D
    Certification : CE,GOST
    Payment Terms : T/T, Western Union
    Supply Ability : 100 pieces per day
    Delivery Time : 1-2days after paid
    • Product Details
    • Company Profile

    Simple Operation DC Spark Leak Detector 220x130x88mm For Chemical And Oil Industry MTH-7D

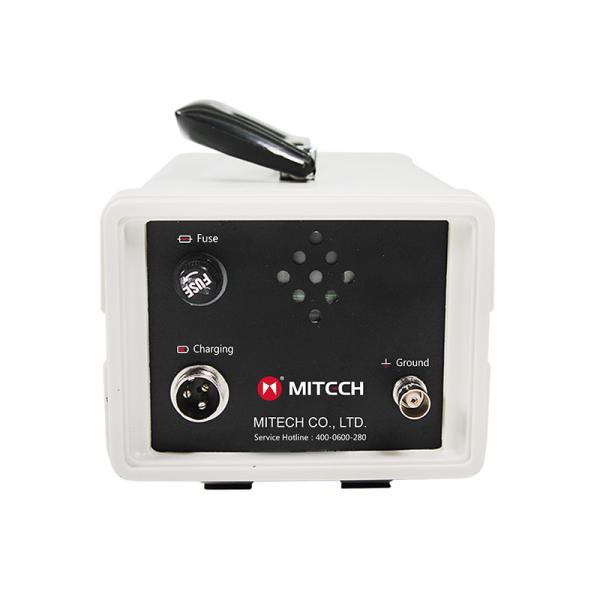

    Mitech DC spark leak detector MTH-7D

    Product Overview

    MTH-7D digital DC spark leak detector,based on the principle of high pressure pulse conducting through anti-corrosion layer,can quickly detect the crack leakage of the coating. While using, if there is pinhole,bubble and crackle in the layer ,the instrument will make a bright spark and accompanied by a warning tone.The operation is extremely simple,and It’s powered by the unique design relies on the large capacity battery packs that no longer rely on 220V power supply.It is suitable for engineering site operations. The performance of the product is stable and reliable, thus widely used in Oil and Gas pipelines,Cable,Enamel,Metal Casting Pipe,Hull and other metal surface corrosion insulation construction quality and aging corrosion monitoring,it is also the necessary testing equipment in chemical, oil, rubber industry.

    Working Principle

    A certain pulse voltage is applied by applying a Anti-corrosive coating to the conductor, if the coating is too thin or there is some metal leakage body,leaky pinhole,pulse high voltage, it will break through the air gap to discharge spark,at the same time ,the alarm will receive the pulse signal,and send out sound and light alarm,and then achieve the purpose of coating detection.
