    Handheld Industrial X Ray Equipment 6500K Limited Color Temperature LED Film Processing Machine

    Ask Lasest Price
    Brand Name : Mitech
    Model Number : MG100
    Certification : ISO9001
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 100 pieces per day
    Delivery Time : 5-8 days
    • Product Details
    • Company Profile

    Handheld Industrial X Ray Equipment 6500K Limited Color Temperature LED Film Processing Machine

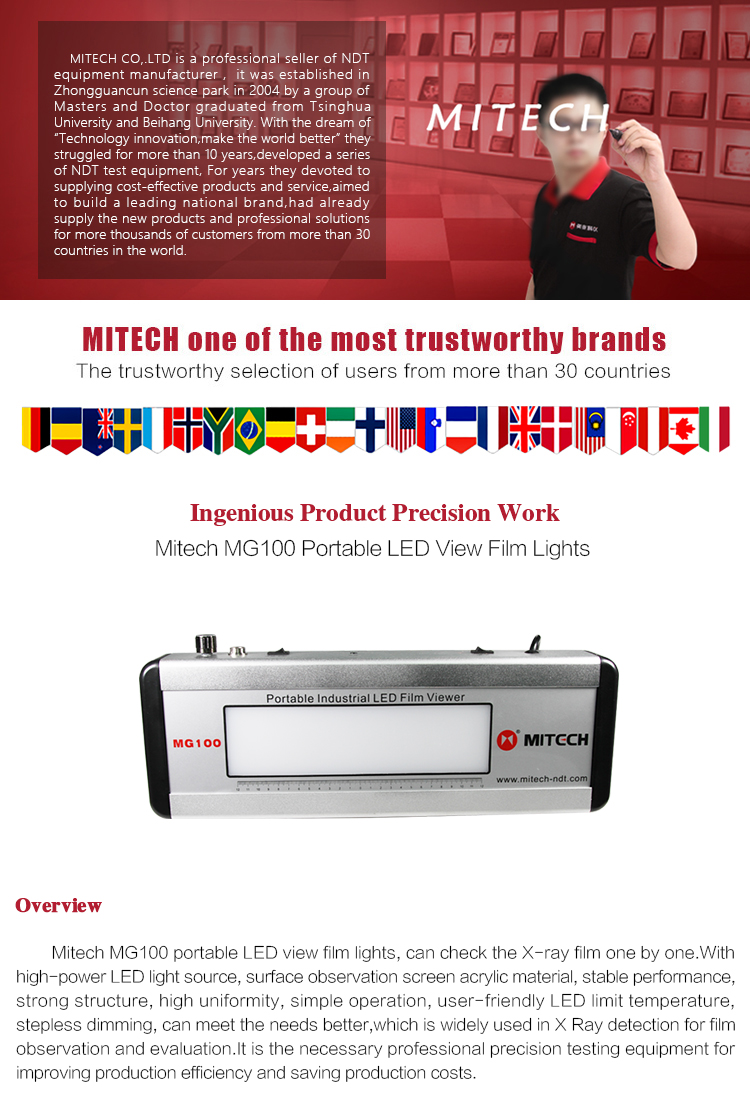

    Overview of the Portable LED film viewer

    Mitech MG100 portable LED film viewer,can check the X-ray film one by one. With high-power LED light source, surface observation screen acrylic material, stable performance, strong structure, high uniformity, simple operation, user-friendly LED limit temperature, stepless dimming, can meet the needs better,which is widely used in X Ray detection for film observation and evaluation.It is the necessary professional precision testing equipment for improving production efficiency and saving production costs.

    Technical Parameters

    Technical SpecificatonsTechnical Parameters
    Maximum brightness≥400,000LUX
    The maximum blackness value can be observed≥5.0D
    Uniformity coefficientg≥0.9
    Scattering coefficient≥0.9
    Work 12 hours continuously of maximum brightness, the surface temperature rise≤60℃
    Observation window253mm*68mm
    Rated power200W
    Power supplyAC170~240V,47~63Hz
    Dimension464*76*177mm
    Total Weight3.4kg

    Features

    • Widely used in the field of industrial testing and evaluation of radiation film negatives;
    • Use high power LED light source, high brightness, uniformity is good;
    • Compact design, durable, suitable for field mobility work;
    • Use acrylic plate on the screen, good light transmission, diffuse scattering performance, durable;
    • Can clearly observe the 5.0D above the black film on the small defects, which meet the daily needs;
    • limited color temperature within 6500K LED,do not hurt the eyes,Long time use is not easy to fatigue;
    • Through the low-voltage electronic pulse width modulation, can achieve brightness stepless dimming, more to protect the safety of users;
    • The use of advanced constant current drive, greatly extending the service life (up to 50,000 hours or more);
    • With pedal mode and manual mode, to meet the different working habits, energy saving and environmental protection;
    • Consistent with JB/T4730-2005,GB/T 19802-2005 and other relevant domestic and foreign standards.
