Overview
Mitech MG100 portable LED view film lights,can check the X-ray film
one by one.With high-power LED light source, surface observation
screen acrylic material, stable performance, strong structure, high
uniformity, simple operation, user-friendly LED limit temperature,
stepless dimming, can meet the needs better,which is widely used in
X Ray detection for film observation and evaluation.It is the
necessary professional precision testing equipment for improving
production efficiency and saving production costs.
Technical Parameters
| Technical Specifications | Technical Parameters |
| Maximum brightness | ≥400,000LUX |
| The maximum blackness value can be observed | ≥5.0D |
| Uniformity coefficient | g≥0.9 |
| Scattering coefficient | ≥0.9 |
| Work 12 hours continuously of maximum brightness, the surface
temperature rise | ≤60℃ |
| Observation window | 253mm*68mm |
| Rated power | 200W |
| Power supply | AC170～240V,47～63Hz |
| Dimension | 464*76*177mm |
| Total Weight | 3.4kg |
Working Principle
The principle of the LED view lamp is fixxing the film containing
the image information on the observation screen, then the light
emitted from the inner light source is scattered through the film
through the observation screen to see if there is a defect on the
film, and the sample is qualified according to the relevant
standard.
Features
l Widely used in the field of industrial testing and evaluation of
radiation film negatives;
l Use high power LED light source, high brightness, uniformity is
good;
l Compact design, durable, suitable for field mobility work;
l Use acrylic plate on the screen, good light transmission, diffuse
scattering performance, durable;
l Can clearly observe the 5.0D above the black film on the small
defects, which meet the daily needs;
l limited color temperature within 6500K LED,do not hurt the
eyes,Long time use is not easy to fatigue；
l Through the low-voltage electronic pulse width modulation, can
achieve brightness stepless dimming, more to protect the safety of
users;
l The use of advanced constant current drive, greatly extending the
service life (up to 50,000 hours or more);
l With pedal mode and manual mode, to meet the different working
habits, energy saving and environmental protection;
l Consistent with JB/T4730-2005,GB/T 19802-2005 and other relevant
domestic and foreign standards.
Scope of applications
Widely used in the field of industrial testing and evaluation of
radiation film.

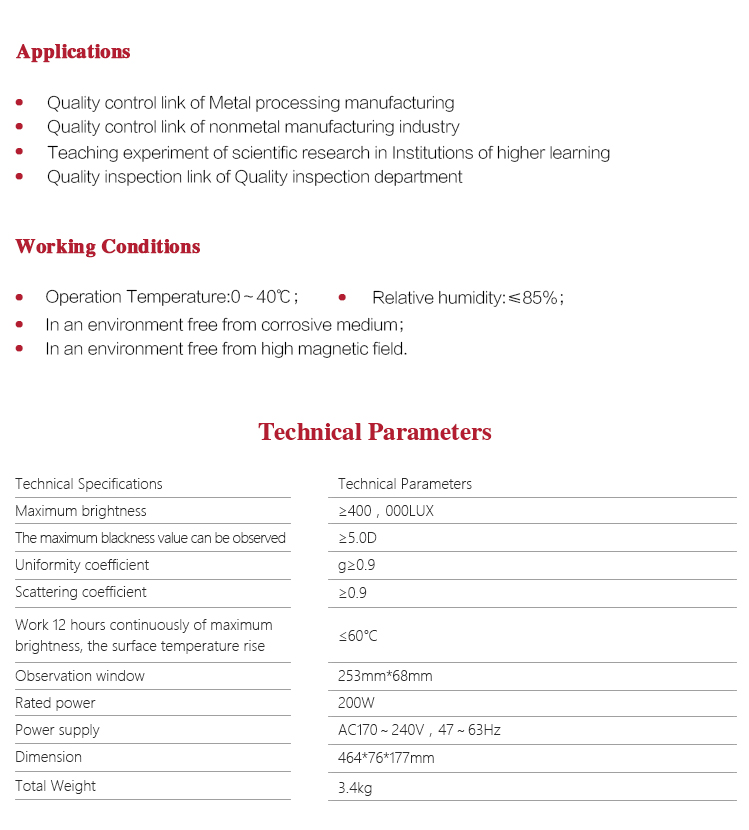

Applications
- Quality control link of Metal processing manufacturing
- Quality control link of nonmetal manufacturing industry
l Teaching experiment of scientific research in Institutions of
higher learning
- Quality inspection link of Quality inspection department
Working Conditions
- Operation Temperature:0～40℃；
- Relative humidity:≤85％；
l In an environment free from corrosive medium；
- In an environment free from high magnetic field
Configurations
| Configuration instructions | NO. | Name | QTY. | Remarks |
| Standard Configuration | 1 | Main unit | 1 | |
| 2 | Foot switch | 1 | |
| 3 | Attchment files | 1 | |
Maintenance and Care
Mitech MG100 portable LED view film lights is a precision detection equipment, the use of special attention
should be paid to the following:
l Do not block the LED view lamp vents, to avoid overheating the
instrument, causing damage;
l When transport mobile LED view film lights, should avoid severe
vibration, so as not to damage the internal devices;
l After using, please receive the shade, to prevent the loss of the
shade, affecting the future use;
l When connection equipment, should be careful, moderate efforts,
not to plug, hard pull;
