MR200 Metal Surface Roughness Measurement Equipment , Surface Roughness Meter

Surface Roughness Tester MR200

Technical parameter

Main feature:

• 28 parameters:Ra,rq,rz,rt,rp,rv,RS,rsm,rz(JIS), ry(JIS) ,rsk,R3z,rmax,rpc,rmr, rku,rδa,rδq,rδc,ry；rk,rpk,rvk,mr1,mr2,A1,A2,V0；
• High accuracy inductance pickup with 320μm range;
• Four filtering methods of RC, PC-RC, GAUSS and D-P;
• Compatible with four standards of ISO, DIN, ANSI and JIS；
• 2.7 inch screen 128×64 dot matrix LCD displays all parameters, graphs and chinese-english menu;
• DSP chip is used to control and process data with high speed and low powerconsumption；
• Can store 20 sets of measurements results;
• External SD card expanding mass storage data;

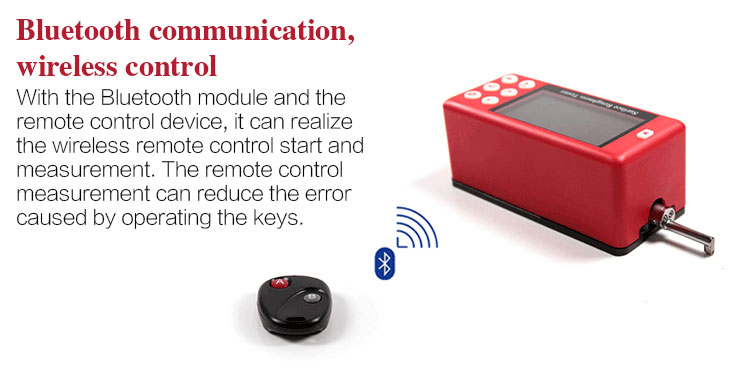

• Built-in standard bluetooth module, wireless connection bluetooth printer, print all parameters and graph;
• Built-in standard MICRO-USB interface for communication with the PC, you can use special software for measurement results analysis and management;
• Built-in lithium polymer rechargeable batteries and charging protection circuit;
• Mechatronics design, smaller, easy to carry;
• With automatic switch-off of the power-saving features, the prompt messages are automatic;

14) Complete accessories, optional surface sensor, the deep grooves sensor, holes sensor, pole hole tooth surface sensor, a small column, micro-adjusting platform, extension bar and others.

Operating Condition

• Ambient temperature: Operating temperature -20 ℃ ~ + 50 ℃;
• Storage temperature: -30 ℃ ~ + 70 ℃
• Relative humidity ≤90%;

The surrounding environment should avoid of vibration, strong magnetic field, corrosive medium and heavy dust.
