Mitech MET Series Portable Eddy Current Flaw Detector intelligent, portable, multi-frequency

Working Principle

The eddy current detection technique is based on the principle of electromagnetic induction, and the excitation signal is loaded into the probe coil. When the probe is close to the metal surface, the alternating magnetic field around the coil will generate the induced current on the metal surface.For flat metal, the flow of induced current is a coil concentric circular, shaped like a vortex, named as the eddy current.The size, phase and flow pattern of the eddy current are affected by the conductivity of the specimen.The eddy current also produces a magnetic field that in turn causes the impedance of the detection coil to change.

So when the conductor surface or near the surface of the defect or the measurement of metal materials change, the intensity and distribution of eddy currents will be affected by changes in the impact,Which in turn causes a change in the detection coil voltage and impedance.Eddy current testing is based on this change, the indirect feedback of the existence of defects within the conductor and the performance of metal materials have changed.

Features

• Widely used in nuclear power, military, petrochemical, metallurgy, university teaching, machinery manufacturing and other fields;
• With modular compact design, small size, light weight, easy to carry, the products can be customized according to customer needs;
• The detector with 10Hz-10MHz test frequency range, can meet a variety of different metal detection requirements;
• Using 5.7-inch color TFT-LCD liquid crystal display, menu design, easy to operate, intuitive display;
• One-button to achieve a variety of modes of switching, the operation more convenient. It can quickly detect a variety of metal surface defects;
• With customizable magnetic memory, coating thickness measurement, conductivity measurement and other functions;
• It has large capacity rechargeable battery, to meet the long-term outdoor work needs, can also be directly connected 220V power supply;

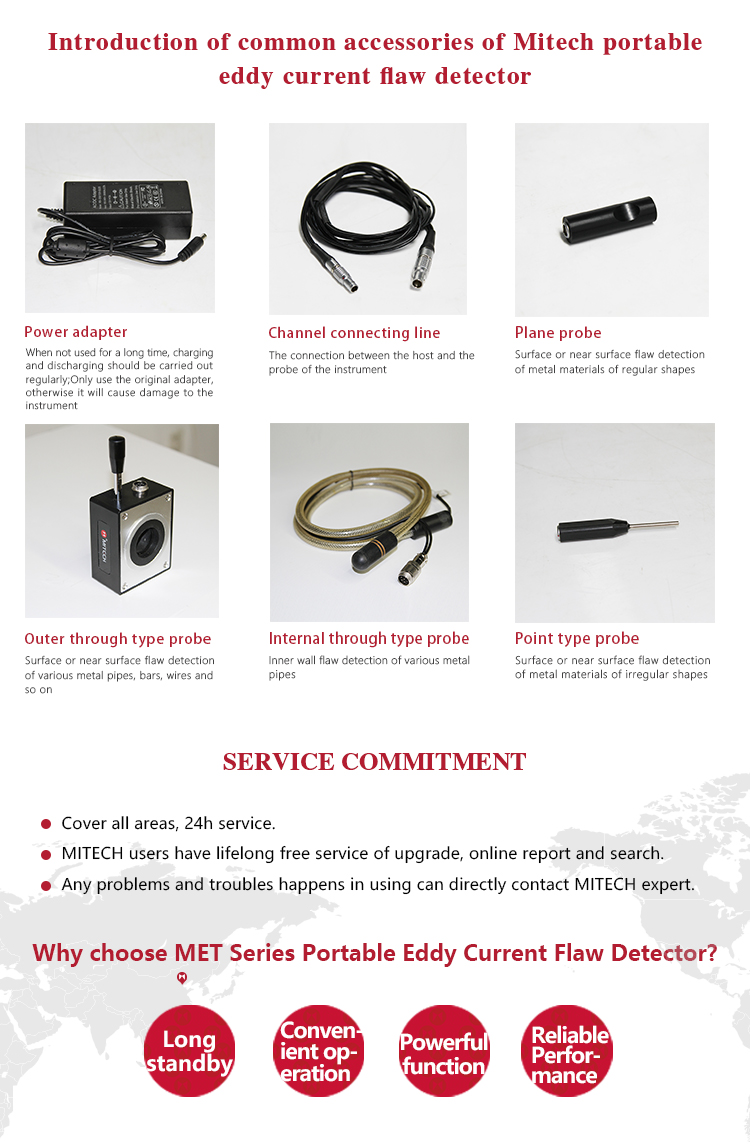

• Compatible with a variety of types of probes, and flexible custom wear, wear, plane, point, weld, fan and other probes;
• It can achieve multi-channel multi-frequency simultaneous detection and can achieve limited mixing, high detection efficiency, high sensitivity;
• Using eddy current impedance plane and time base scan display technology, real-time multi-window display with the same window eddy current signal;
• Chinese and English version of a key to switch, automatic, manual amplitude and phase adjustment, the rapid realization of digital analog electronic balance;
• Real-time alarm output, a variety of alarm window mode, non-equal amplitude, asymmetric phase alarm area settings;
• Using professional "digital filter", effectively suppress the interference signal to ensure the accuracy and stability of the test;
• Can store a large number of various testing procedures and data, with signal acquisition, read, transfer, analysis, storage, playback and other full intelligent processing functions can be connected to the printer to print the file output, storage management;

• Consistent with ASME,GB/T,YB,EN,JIG,API-5L,API-5CL,MH/T and other relevant domestic and foreign standards.
