    Large Forgings / Blank Ultrasonic Flaw Detector Mitech Ultrasonic Straight Probe


    Mitech Ultrasonic Straight Probe used for Plank stuff, large forgings, blank, castings detection


    Product Overview


    Mitech ultrasonic straight probe, choice superior performance of the piezoelectric material chip, damping block and protective film. Strong penetration, high signal to noise ratio, has good wear resistance, excellent near surface resolution, smaller scattering noise. The key manufacturing processes using special equipment and fixtures, as far as possible to exclude the impact of human factors. Can provide high-quality customized solutions to meet the special needs of customers. Straight probe is suitable for plate, large forgings, blanks, castings testing. Use of test equipment and test blocks in line with relevant standards at home and abroad to carry out rigorous calibration, the quality of the inspection section demanding perfect. Available with the probe serial number uniquely corresponding to the measured echo waveforms and spectrograms. All data traceability, can provide distance wave curve certificate according to customer needs. Consistent with "EN12668-2" and other relevant standards at home and abroad, compatible with a variety of BNC (Q9), Q6 connector GB, American standard probe interface and LEMO-00 (C5), LEMO-1 (C9), Microdot (L5) and other European standard connector.

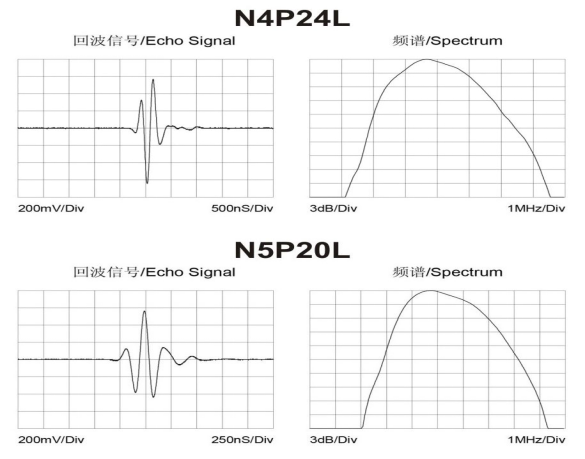

    Performance map


    Parameter Table


    TypeMaterialFrequency(MHz)Chip size(mm)
    1P10N

    Ordinary

    Materials(P)

    110
    1P20N20
    1P24N24
    2P10N210
    2P20N20
    2P24N24
    2.5P14N2.514
    2.5P20N20
    4P10N410
    4P20N20
    4P24N24
    5P5N55
    5P8N8
    5P10N10
    5P14N14
    5P20N20
    10P5N105
    10P6N6
    10P10N10
    1C20NComposites(C)120
    1C24N24
    2C20N220
    2C24N24
    4C20N420
    5C5N55
    5C10N10
    10C5N105
