Features

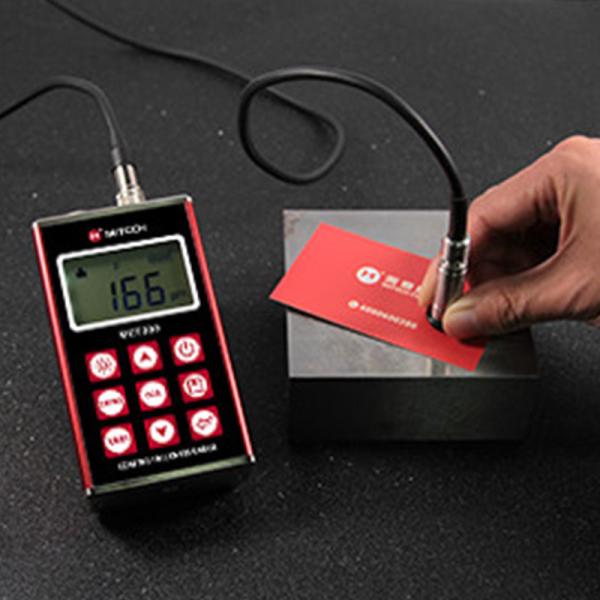

• With different external probes, the gauge can be applied to measuring thickness of non-magnetic coating on magnetic metal substrate, as well as non-conductive coating on non-magnetic metal substrate.
• Five types of probes (F400, F1, F10, N1, CN02) are available for different application. F10 probe measures up to 10mm.
• measuring modes: single or continuous, changeable.
• Two calibration methods can be applied to the gauge; And the system error of the probe can be corrected with the basic probe calibration method.
• Measured values and user information are shown on a large, easy-to-read LCD. A display back light ensures easy reading of screen data in poorly-lit conditions.
• Measuring status indicator showing the measuring status.
• The gauges’ user-friendly measuring system permits automatic storage of up to 1000 readings in one memory matrix for later statistical evaluation.
• Battery information indicates the rest capacity of the battery.
• Auto sleep and auto power off function to conserve battery life.
• communication port. Optional software to process the memory data on the PC.
• Compact aluminum case,suitable for use under poor working conditions

Techinical specifications

• Measuring principle: Magnetic induction & Eddy current
• Measuring range: (0～1250) μm, depends on probes. maximum 10mm for the probe F10. Refer to Appendix.
• Low range resolution: 0.1μm
• Accuracy: ±(3%Thickness+1) μm, depends on probes and conditions
• Display:4 digits LCD with EL backlight
• Memory for up to 20 files (up to 50 values for each file) of stored values.
• Unit system: Metric (μm),Imperial (mil)
• Power source: Two “AA” size, 1.5 Volt alkaline batteries. 200 hours typical operating time (EL backlight off).
• Communication:USB1.1
• Dimensions:125mm×67mm×31 mm
• Weight:340g
